Automatic Airjet & Vacuum Cleaning Machine

Product Details

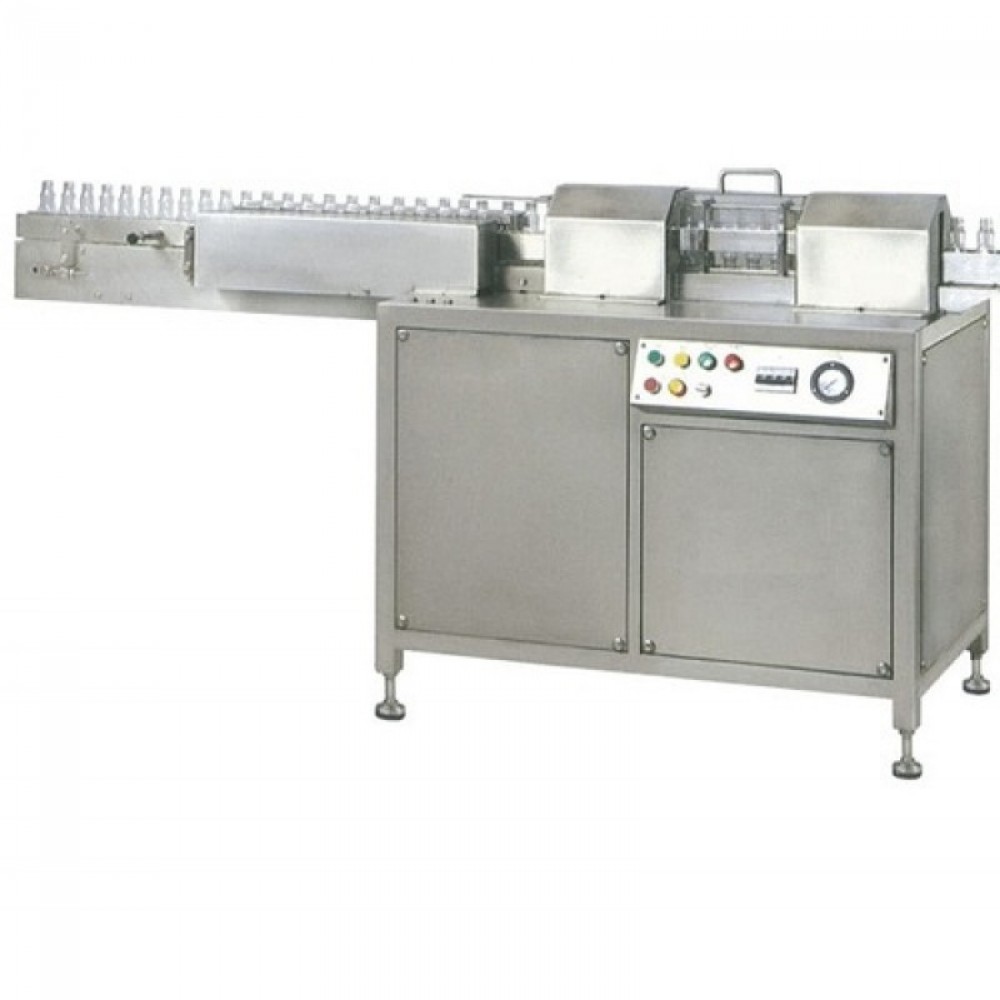

Automatic Airjet & Vacuum Cleaning Machine

Automatic Airjet & Vacuum Cleaning Machine by Shivoham Pharma Machines LLP

Our Automatic Airjet & Vacuum Cleaning Machine is a state-of-the-art equipment designed to deliver superior cleaning performance for bottles, vials, jars, and other containers in pharmaceutical, food, and beverage industries. This versatile machine combines high-pressure airjet technology with vacuum suction to ensure thorough removal of dust, residues, and particulates from the interior and exterior surfaces of containers.

Constructed from high-quality stainless steel, the machine guarantees durability, hygiene, and ease of maintenance. The automatic operation features a precisely controlled sequence of air jets and vacuum cycles that efficiently clean containers without manual intervention. The system’s adjustable settings enable customization based on container size, shape, and cleaning requirements, ensuring optimal results across a wide range of applications.

The powerful airjets dislodge contaminants from the surfaces, while the vacuum system extracts loosened residues, achieving a high level of cleanliness. The machine’s compact design allows easy integration into existing production lines, and its user-friendly control panel simplifies operation and monitoring. Safety features such as automatic shut-off, leak detection, and alarms further ensure secure and reliable functioning.

Ideal for high-volume production environments, our Automatic Airjet & Vacuum Cleaning Machine enhances productivity by providing rapid, consistent, and hygienic cleaning processes. It significantly reduces manual labor, minimizes contamination risks, and ensures compliance with stringent industry standards, making it an indispensable asset for industries focused on quality and efficiency.

Containers are fed in upright position on a scrambler and further fed to feed worm, where containers are automatically inverted.

The synchronized mechanism feed the container one by one through a chamber which is under negative pressure. A series of nozzles blow air in the container at a high pressure. The dust is collected in dust collector box through exhaust fan.

The container is further fed through the synchronized mechanism and feed worm. It is once again upright position and comes out duly cleaned for further operation.

  • Positive & Negative Air pressure for proper cleaning.
  • Easy operation. Stationary nozzles eliminate contamination.
  • The stationary nozzles avoid chipping of bottle necks.
  • Separate zone for dust collection chamber for easy cleaning after operation.
  • Over load clutch is provided to prevent jamming on machine.
  • Pressure regulator with pressure switch optionally provided.
Model AEAC 60 AEAC 120
Output/ Hour 2400 to 4000 3600 to 7200
Direction of Machine** Right to Left
Electrical Specifications** 1 HP / 415 Volts / 50 Hz 1.5 HP / 415 Volts / 50 Hz
Cleaning Cycle Air Pressure (Positive) & Vacuum (Negative)
Working height Adjustable 860 to 910 mm

* Specification can be changed as per customers’ requirements
